Mechanical Brakes

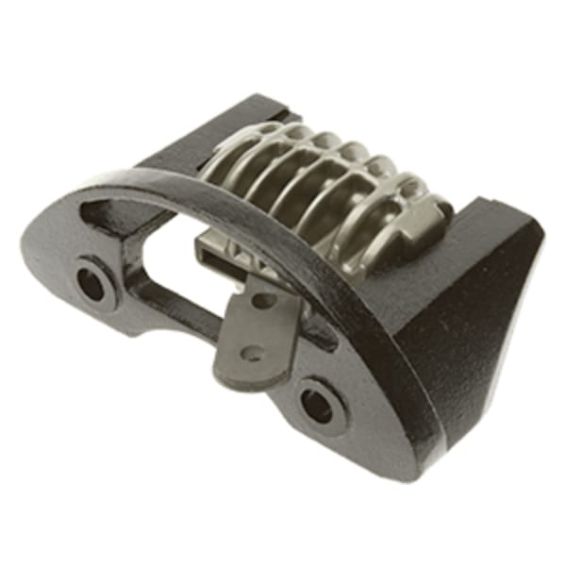

M15WM Mechanical Brakes

  • Capable of 1,450 Lbs. of clamp force
  • Designed to fit inside an 8″-10” diameter wheel
  • Available as a complete system, aluminum caliper, ductile cast iron bracket & hub/disc
  • Simple single piece caliper bridge design
  • Choice of CW or CCW lever actuation
  • Minimum moving parts to wear out
Request a Quote
Enquire About This Product

Product Description

Mechanical brake system design for hydraulic wheel motors

Specifications

Weight, Rotor Diameter, Rotor Thickness, Lining Type, Total Lining Area, Usable Lining Thickness Per Pad
2.5 Lbs., 6 To 8 In., .188 In., Non-Asbestos Organic, 2.9 Sq. In., .125 In.

Data Sheets

Mechanical Brake System - M15 WM for 10 Inch Wheels, Mechanical Brake System - M15 WM for 8 and 10 Inch Wheels
