Spring Applied Hydraulic / Air Release

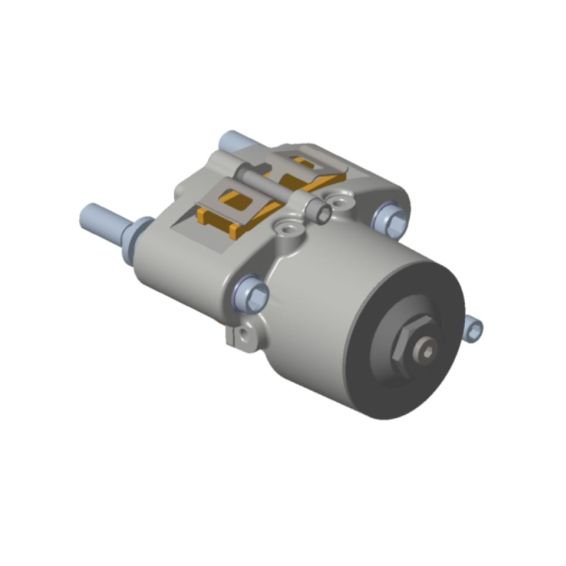

M100 Integrated SAHR

  • Capable of 10,000 lbs. minimum of parking clamp force and 12,500 lbs. maximum
  • Actuation mechanism is sealed from the environment
  • Durable iron housing
  • Self adjusting mechanism
  • Maintains consistent clamp force
  • Eliminates required pad adjustment by end user
  • Minimizes warranty due to end user interface
  • Compact size ideal for driveline mounting
  • Low hold-off pressure (Hyd Oil)
  • Positive pad retention & retraction
  • Common tool manual release access
Request a Quote
Enquire About This Product

Product Description

Mechanical parking brake with Integrated Spring Actuated Hydraulic Release (ISAHR)

Specifications

Weight, Rotor Diameter, Rotor Thickness, Lining Type, Total Lining Area Per Pad, Min Hold-Off Pressure, Max Operating Pressure
~35.5 LBS., 10'' to 30'', .375'' to 1.25'', Sintered, 6.75 Sq. In., 1,450 PSI, 3,000 PSI

Data Sheets

Hayes Mechanical Brakes - M100 Integrated SAHR
