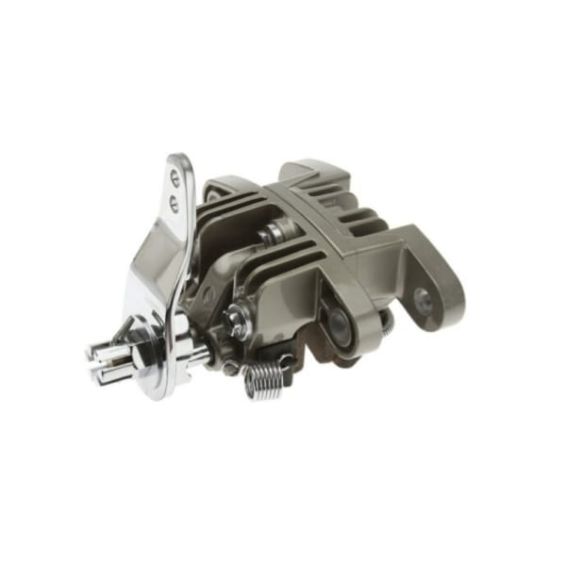

600M Mechanical Brakes

Capable of 5,000 lbs. of clamp force
Lightweight die cast aluminum housing
Designed for quick change friction pads
Unique dual mounting lugs permit either fixed or floating mount
Pad wear adjustment quickly completed by removal of cotter pin and adjustment to takeup nut
Quick rise on cam for maximum lever efficiency
Push pin to housing seals
Both CW and CCW lever actuation

Weight	6 Lbs.
Rotor Diamater	10 To 30 In.
Rotor Thickness	.375" To .500"
Lining Types	Sintered, Non-Asbestos Organic
Total Lining Area	8.6 Sq. In.
Usable Lining Thickness Per Pad	.30 In.
