Hydraulic & Mechanical Brakes

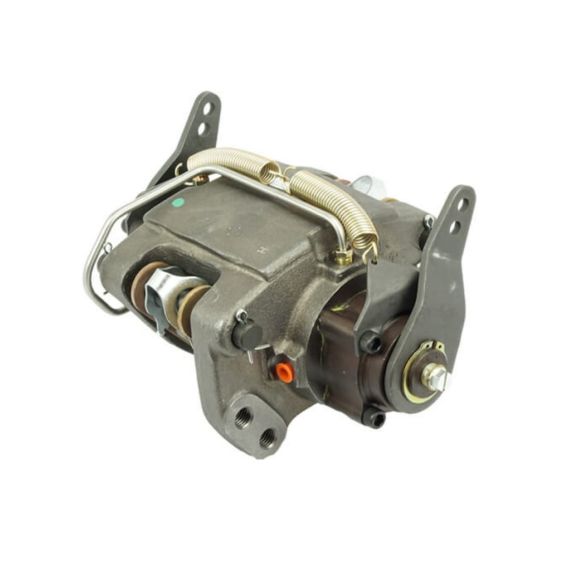

2-660-1SA Hydraulic Brake

  • Capable of 10,000 Lbs. of service clamp force, and 10,000 Lbs. of mechanical clamp force
  • Ideal for fixed mount on driveline
  • One piece nodular iron housing
  • Square seal piston retraction for constant running clearance
  • Integral secondary/park brake self adjusts for pad wear
  • CW or CCW park brake lever actuation
  • Variety of inlet and bleeder options for mounting flexibility
  • Quick change pads
Send a Request
  • Hydraulic & Mechanical brake - service & park, heavy duty
  • Weight
    46 Lbs.
    Rotor Diameter
    12 To 20 In.
    Rotor Thickness
    .50 To 1.0 In.
    Lining Type
    Sintered; Non-Asbestos Organic
    Total Lining Area
    24 Sq. In.
    Usable Lining Thickness Per Pad
    .50 In.
    Piston Diameter
    2.6 In.
    Max Pressure
    2000 Psi
    Fluid Displacement
    .40 Cu. In.
    Fluid Type
    Brake Fluid; Hydraulic Oil
    Fluid Inlet
    12:00 3:00 9:00
    Bleeder
    12:00 3:00 9:00
