Hydraulic Brakes

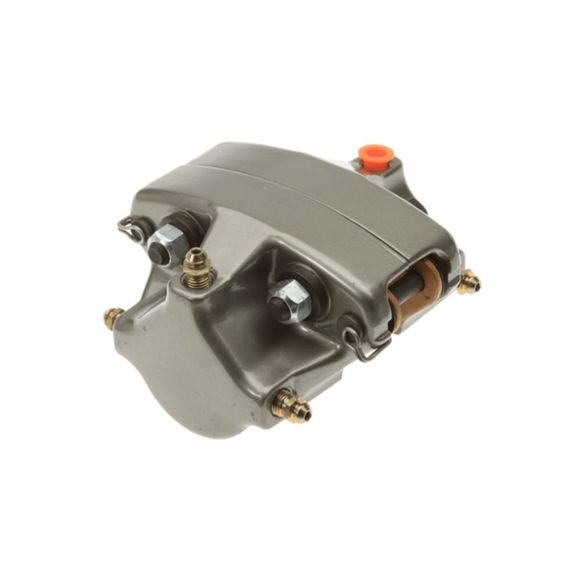

2-41-1S Hydraulic Brake

  • Capable of 3,100 Ibs of clamp force
  • Economically constructed with die cast aluminum housing
  • Square seal piston retraction for constant running clearance
  • Three bleeder and inlet options for mount flexibility
  • Utilizes internal transfer port with oring seal
  • Available for either hydraulic or brake fluid application
  • Top or side mount bracket.
Send a Request
  • Haye's 2-41-1S Hydraulic Brakes have been made with a die cast, saving money and its lining is organic and without asbestos. These brakes weigh only 4 pounds yet it has up to 3,100 pounds of clamp torque.
  • Weight
    4 Lbs.
    Rotor Diameter
    6 To 20 In.
    Rotor Thickness
    .100" To .375"
    Lining Type
    Non-Asbestos; Organic; Sintered
    Total Lining Area
    17.30 Sq. In.
    Usable Lining Thickness Per Pad
    .175 In.
    Piston Diameter
    1.622 In.
    Max Pressure
    1500 Psi
    Fluid Displacement
    .161 Cu. In.
    Fluid Type
    Brake Fluid; Hydraulic Oil
    Fluid Inlet
    12:00 3:00 9:00
    Bleeder
    12:00 3:00 9:00
