Hydraulic & Mechanical Brakes

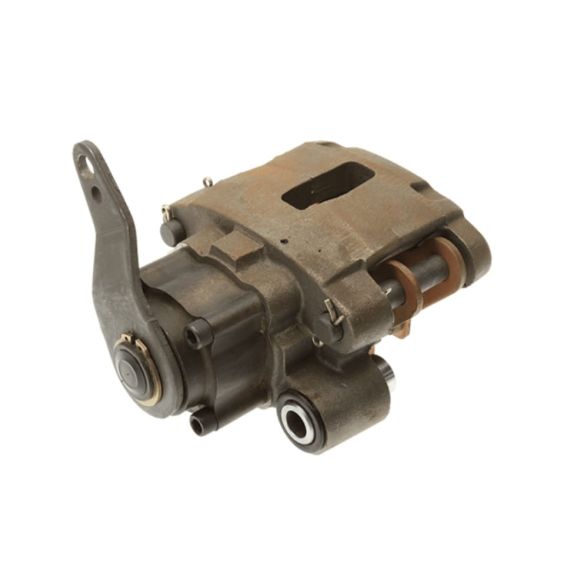

1-663-1SA Hydraulic Brake

  • Capable of 10,000 Lbs. of service clamp force, and 10,000 Lbs. of mechanical clamp force
  • Ideal for mount on driveline or in the wheel
  • One piece nodular iron housing
  • Square seal piston retraction for constant running clearance
  • Integral secondary/park brake self adjusts for pad wear
  • Choice of CW or CCW lever actuation
  • Variety of inlet and bleeder options for mounting flexibility
  • Supplied with mount bolts and sealed and lubricated slider pins
  • Quick change pads
  • The 1-633-1SA Hydraulic & Mechanical Brake is 21 pounds with a rotor width of 10 to 20 inches. Its piston is 2.6 inches wide and has a top pressure of 2000 PSI. This Hayes brake is best suited for government, industrial and speciality markets.
  • Weight
    21 Lbs.
    Rotor Diameter
    10 To 20 In.
    Lining Type
    Non-Asbestos Organic; Sintered; Semi-Metallic
    Total Lining Area
    14.5 Sq. In.
    Usable Lining Thickness Per Pad
    .328 In.
    Piston Diameter
    2.6 In.
    Max Pressure
    2000 Psi
    Fluid Discplacement
    .20 Cu. In.
    Fluid Type
    Brake Fluid; Hydraulic Oil
    Fluid Inlet
    12:00 3:00 9:00
    12:00 3:00 9:00
