Hydraulic Brakes

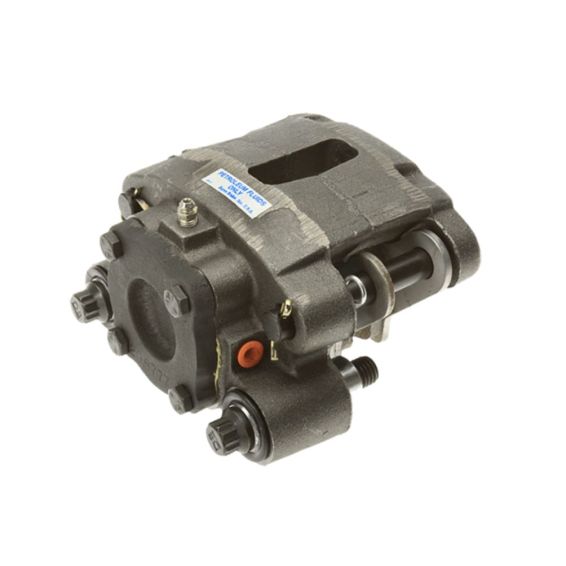

1-663-1S Hydraulic Brake

  • Capable of 10000 lbs. of clamp force
  • One-piece nodular iron housing
  • Ideal for mount on driveline or in the wheel
  • Square seal piston retraction for constant running clearance
  • Supplied with mount bolts and sealed and lubricated slider pins
  • Variety of inlet and bleeder options for mounting flexibility
  • Quick change pads
Request a Quote
Enquire About This Product

Product Description

The 1-663-1S Hydraulic Brakes can get up to 10000 pounds of clamp torque and is in an iron shell. It's perfect to be placed on the steering wheel and it comes with slider pins, both lubricated and sealed as well as bolts to mount it. It only weighs 18 pounds and its change pads are extremely fast.

Specifications

Weight, Rotor Thickness, Lining Type, Total Lining Area, Usable Lining Thickness Per Pad, Piston Diameter, Max Pressure, Fluid Displacement, Fluid Type, Fluid Inlet, Bleeder
18 Lbs., .5 To 1.0 In., Non-Asbestos Organic; Sintered; Semi-Metallic, 14.5 Sq. In., .328 In., 2.6 In., 2000 Psi, .20 Cu. In., Brake Fluid; Hydraulic Oil, 12:00 3:00 9:00, 12:00 3:00 9:00

Data Sheets

Hayes Hydraulic Brakes - 1-663-1S
