Mechanical Linear Actuators

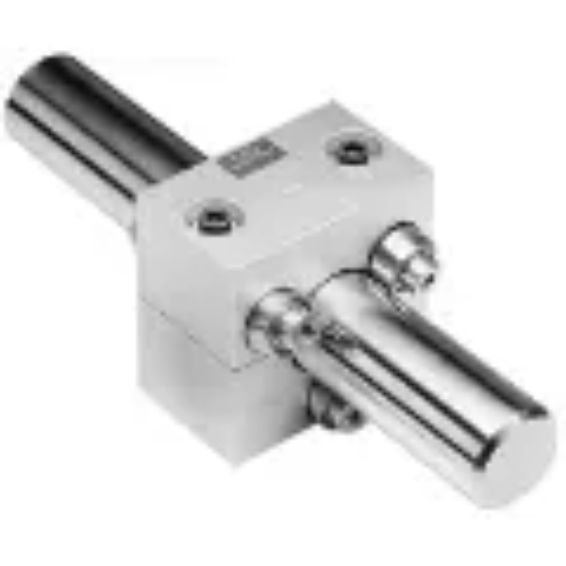

Roh'lix - Metric Model Linear Actuators

  • For horizontal or vertical axial loading applications
  • Designed to slip when overloaded, providing intermittent overload protection
  • Easy to install
  • Working lifetime expectancy of 2 million to over 100 million inches of linear travel, depending on application variables
  • Easily adjustable thrust settings
  • Five-inch sizes and five metric sizes are available, providing up to 200 lbs. of thrust capacity
  • Two Roh-Lix linear actuator units can be used in tandem to increase thrust rating
  • Special shaft diameters, leads, and block sizes are available
  • Right-hand lead is standard, left-hand lead available upon request
  • Maintenance-free bearings are lubricated for life and require no additional lubricatio
  • Zero-Max’s Roh’Lix linear actuators are threadless, mechanical, screw-type devices that convert rotary motion into precise linear motion and thrust using rolling-element ball bearings. These adjustable automatic overload protectors will slip when overloaded, providing linear clutching without additional clutch mechanisms.
