Mechanical Brakes

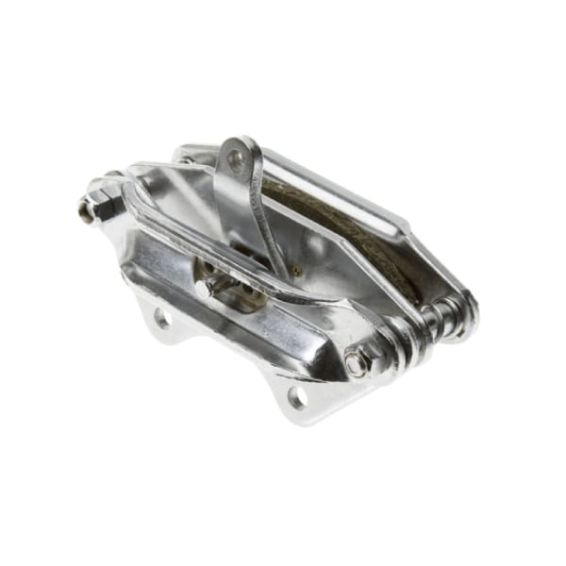

1100M Mechanical Brakes

  • Capable of 900 Lbs. of clamp force
  • Economical heat treated stamped steel construction
  • Zinc finish resists rust and corrosion
  • Large friction area for extended pad life
  • Can be fixed or floating mounted
  • Mount bracket optional
  • Choice of CW and CCW lever actuation
  • Haye's 1100M Mechanical Brakes have up to 900 pounds of clamp torque and have an impressive zinc coating that will stop corrosion. There is also a choice of a CCW or CW bar start and it only weighs 2.73 pounds.

  • Weight
    2.73 Lbs.
    Rotor Diameter
    5 to 8 In.
    Rotor Thickness
    .156" - .188"
    Lining Type
    Non-Asbestos Organic
    Total Lining Area
    11 Sq. In.
    Usable Lining Thickness Per Pad
    .130 In.
