Hydraulic Brakes

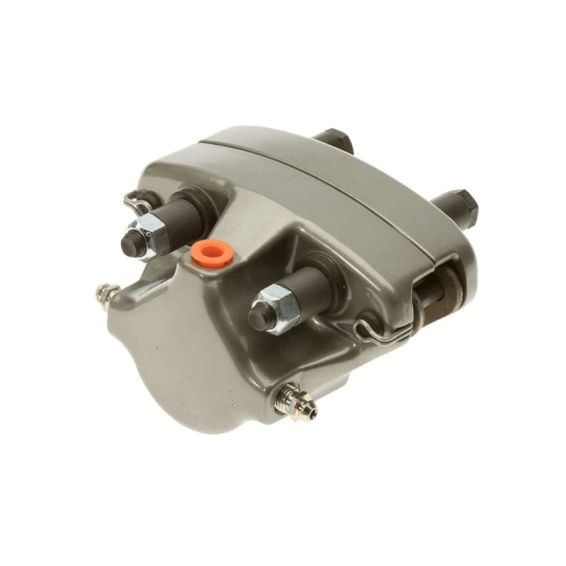

1-41-1S - Hydraulic Brake

  • Capable of 3100 lbs. of clamp force
  • Lightweight cast aluminum housing
  • Square seal piston retraction for constant running clearance
  • Three bleeder and inlet options for mount flexibility
  • Available for either hydraulic or brake fluid application
  • Various brackets available
Request a Quote
Enquire About This Product

Product Description

Hayes' 1-41-1S Hydraulic Brakes have a clamping torque of 3100 pounds whilst being housed in aluminium. Its piston has a square seal, so when it retracts it can continually run. It has a variety of bleeder and inlet choices so it can be mounted as needed.

Specifications

Weight, Rotor Thickness, Lining Type, Total Lining Area, Usable Lining Thickness Per Pad, Piston Diameter, Max Pressure, Fluid Displacement, Fluid Type, Fluid Inlet, Bleeder
4 Lbs., .100 To .375 In., Non-Asbestos Organic; Sintered; Semi-Metallic, 7.30 Sq. In., .175 In., 1.622 In., 1500 Psi, .081 Cu.In., Brake Fluid; Hydraulic Oil, 12:00; 3:00; 9:00, 12:00; 3:00; 9:00

Data Sheets

Hayes Hydraulic Brakes - 1-41-1S
Read more
